SM-47A · Machete Family
Super Machete APT
Conceived for USAF APT / T-X. Built as a Super Machete.
Speed
Mach 2.27
Radius
661 nm
Thrust
26,600 lb
Ceiling
55,000 ft
Seats
2 tandem
Engine
F414
Overview
The SM-47A is a highly maneuverable, single engine, two seat tandem, fixed wing supersonic Advanced Pilot Trainer. A variant of the SM-47 Super Machete conceived specifically to satisfy USAF Advanced Pilot Training (APT) Family of Systems, known also as T-X.
The SM-47A is a highly maneuverable, single-engine, two-seat tandem, fixed-wing supersonic Advanced Pilot Trainer aircraft. A variant of the SM-47 Super Machete, the SM-47A was conceived specifically to satisfy the requirements of the USAF Advanced Pilot Training (APT) Family of Systems (FoS) aircraft, known also as the T-X.
Powered by a single GEAE F414 enhanced afterburning turbofan with over 26,000 lbs of thrust at sea level, the SM-47A will have digital Power-By-Wire flight controls, canard foreplanes, a distinctive empennage and 9-g maneuverability with full internal fuel. The Forward Swept Wing (FSW) SM-47A will offer a maximum level speed at altitude in excess of Mach 2.2 and a tactical radius on internal fuel of over 700 nm.
A dedicated Stavatti solution originally conceived to satisfy the USAF Advanced Pilot Training (APT) Family of Systems (FoS) requirement, the SM-47A will be capable of in-flight refueling and meets or exceeds all of the performance and mission requirements as specified in the APT FoS RFP. Benefiting from an advanced avionics suite, the SM-47A is a bridge between fourth and sixth generation fighters focused upon performance, maneuverability, maintainability and affordability rather than low observability.
Gallery
Authentic Stavatti imagery.

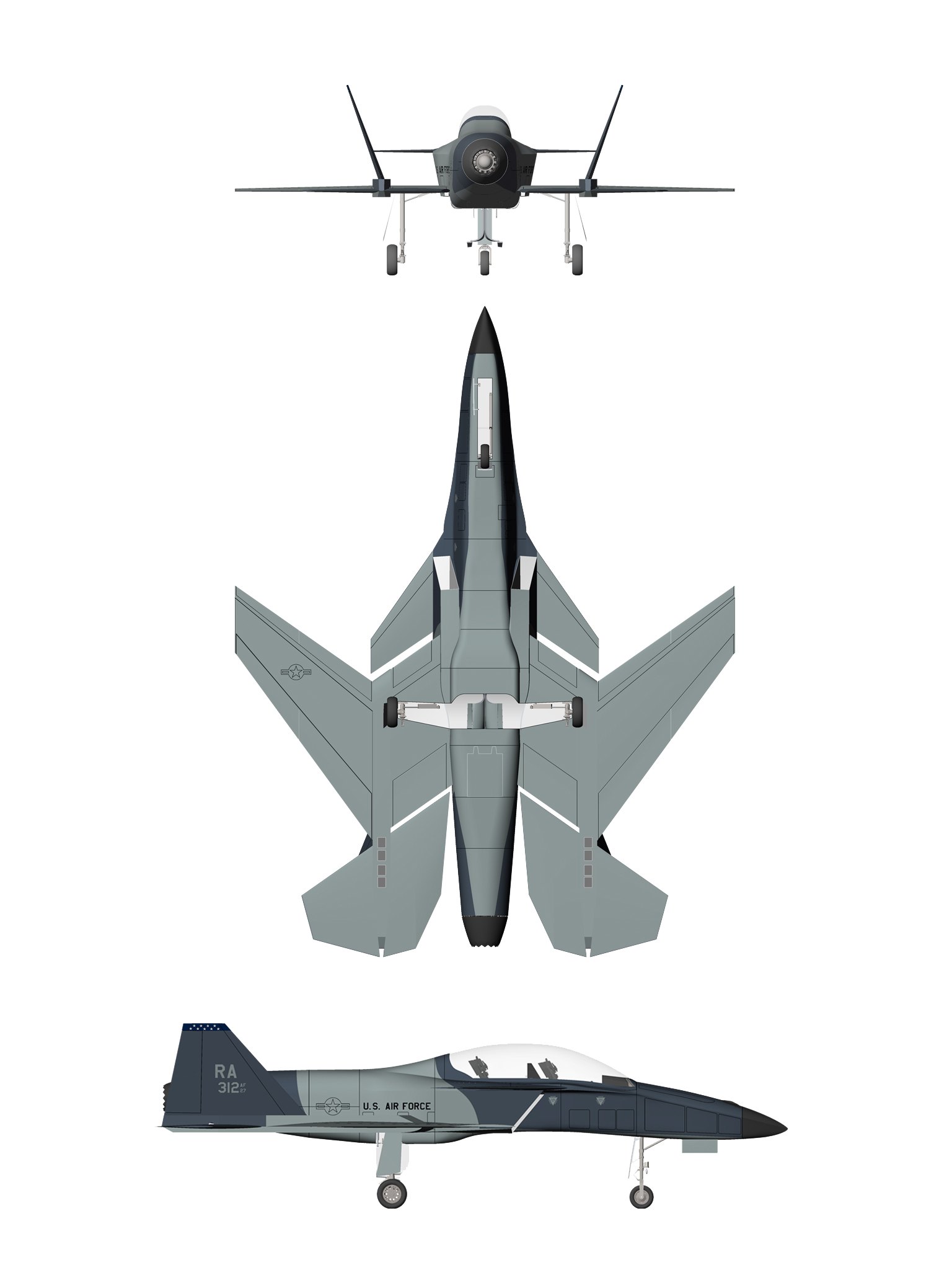

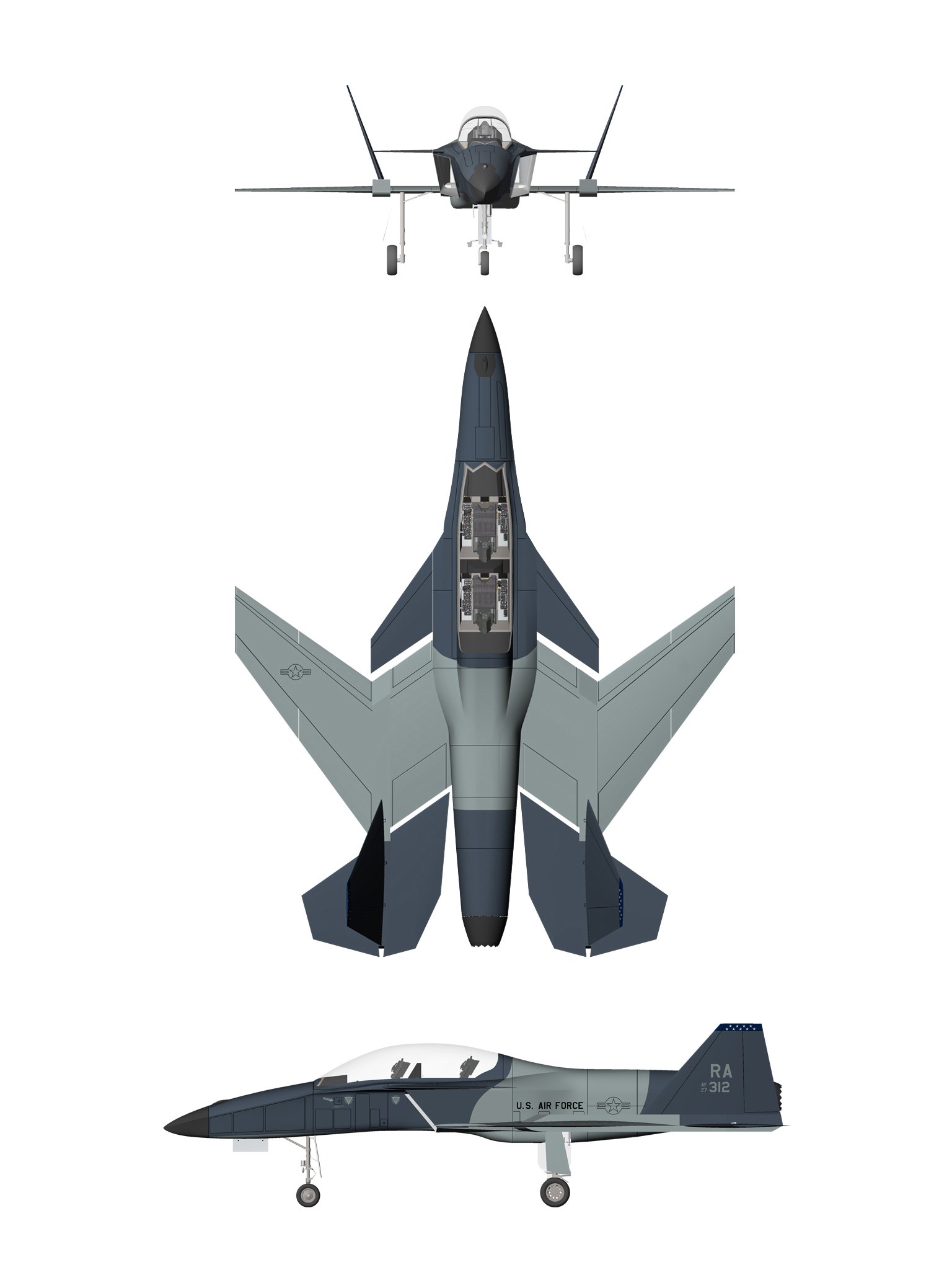

General arrangement
Arrangement.
Variants
One airframe. Multiple missions.
SM-47A
APT / T-X
Two seat tandem advanced pilot trainer.
Data
Specifications and performance.
SM-47A Super Machete APT
Aircraft
- Aircraft
- SM-47A Super Machete advanced pilot trainer
- Type
- APT / T-X and supersonic trainer
- Manufacturer
- Stavatti Aerospace Ltd
- Unit flyaway cost
- $25,000,000 typical
- Availability
- Pre-Order Today to Secure Delivery Slot
- Crew
- Two, MK16E or MK18 zero-zero ejection seats
Dimensions
- Wingspan
- 33 ft 4 in
- Length overall
- 42 ft 0 in
- Height overall
- 12 ft 4 in
- Wing area
- 308 sq ft
- Wheelbase / wheeltrack
- 16 ft 6 in / 12 ft 0 in
Powerplant
- Number
- 1
- Type
- Afterburning turbofan
- Model
- F414 Enhanced
- Manufacturer
- GE Aerospace
- Afterburning / military thrust
- 26,600 / 16,232 lbs
- Nozzle
- Thrust vectoring optional
Weights
- Empty
- 14,900 lbs
- Max internal fuel
- 6,000 lbs
- Max warload
- 0 lbs (provisions for 12,000 lbs)
- Mid-mission weight
- 18,500 lbs
- Max takeoff weight
- 21,500 lbs
Loadings
- Wing loading (MMW / MTOW)
- 60.0 / 69.8 lbs/sq ft
- Thrust to weight (MMW / MTOW)
- 1.44 / 1.24
- Positive load limit (MTOW)
- 15.0
Armament
- Fixed internal
- None; provisions for M61A2 20 mm, 1,000 rds
- Expendable
- None; provisions for 8 wing hardpoints, 12,000 lbs
Performance
- Max level speed at SL
- 1.23 Mach
- Max level speed at 15,000 / 35,000 ft
- 1.60 / 2.27 Mach
- Max supercruise at 15,000 / 35,000 ft
- 1.00 / 1.00 Mach
- Typical cruise
- 0.85 Mach
- Approach / landing stall at SL
- 127 / 106 KTAS
- Max initial climb at SL
- 47,700 ft/min
- Service ceiling exceeds
- 55,000 ft
- Max speed range / radius, internal fuel
- 189 / 85 nm
- Supercruise range / radius
- 864 / 420 nm
- 0.85 Mach range / radius
- 1,359 / 661 nm
- 0.85 Mach ferry range, 2 × 330 tanks
- 1,907 nm
- Takeoff / landing ground roll
- 962 / 1,829 ft
Avionics & Electronic Warfare
- Radar
- PhantomStrike AESA
- IRST
- EOTS
- HUD
- CED, HMD or LiteHUD
- Comm
- AN/ARC-210 Gen V
- IFF
- AN/APX-125
- Data link
- TACR-16DL
- GPS/INS
- FALCN
- TACAN
- AN/ARN-153(V)
- RF ECM
- AN/ALQ-211A(V)4
- MAWS
- AN/AAR-58
- SPJ
- AN/ALQ-214(V)4/5
- Chaff/flare
- AN/ALE-47
